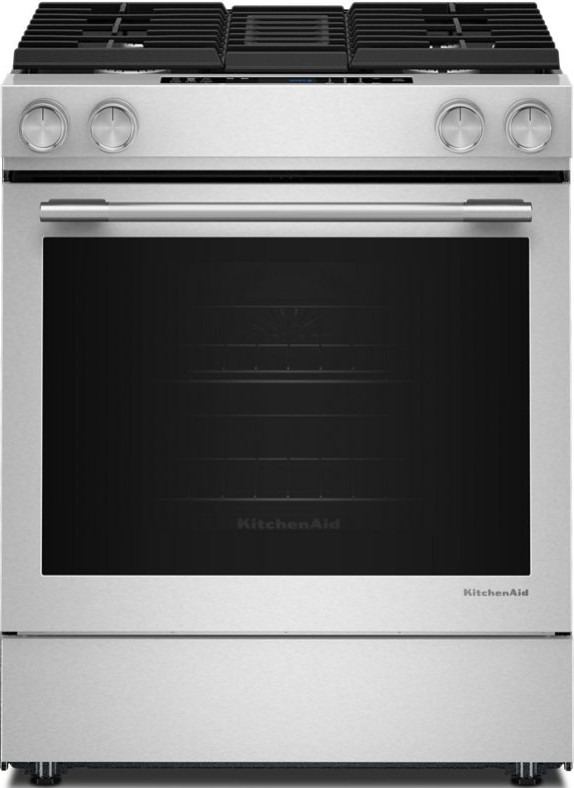

KitchenAid® 30” PrintShield™ Stainless Steel Dual Fuel Slide-In Gas Range with 4 Burner and Downdraft


Model #:

KSDV730TPS

KitchenAid® 30” PrintShield™ Stainless Steel Dual Fuel Slide-In Gas Range with 4 Burner and Downdraft -0

At a Glance

Product Dimensions 36"h x 29.875"w x 28.875"d

This all-in-one dual fuel range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odors can be removed outside or filtered air can be recirculated inside. This range also features flawless cooking results from Even-Heat™ True Convection, featuring a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful caramelized vegetables.Read More

Sale $3,499.20

$3,888.00

Save $388.80

What We Offer

Get to know this product.

Product Overview

Product Overview

Downdraft

Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately.

External or Recirculating Venting Options

Allow for more flexibility on how your downdraft cooktop vents. Choose between external ventilation or convert to duct-free recirculation (kit sold separately), ideal for installation in an island.

Even-Heat™ True Convection

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Steam Bake Mode with Steam Bake Tray

Provides additional moisture during baking, so you can enjoy Basque cheesecake and other delicious desserts with Steam Bake mode.

6.4 Cu. Ft. Total Capacity

A generous 6.4 cu. ft. total capacity of the oven cavity and baking drawer lets you cook multiple dishes on multiple racks at once.

Useful Documents
Specifications

General Specs

ColorStainless Steel
Color/Finish NamePrintShield™ Stainless Steel
Door ColorPrintShield™ Stainless Steel
Handle ColorPrintShield™ Stainless Steel
Trim ColorPrintShield™ Stainless Steel
Total Capacity (cu. ft.)6.4
Number of Oven(s)Single
Fuel TypeDual Fuel (NG)
Door Panel TypeGlass
Burner TypeSealed
Range TypeSlide-In
Number of Elements/Burners4
Cooktop Surface StyleBurner Grate
Cooktop SurfacePorcelain Coated
Grate MaterialCast Iron
Oven Cleaning MethodSteam Clean
Total Number Of Oven Racks2
Total Number Of Rack Positions7
Oven FeaturesSabbath Mode, Proofing Mode, Pizza Cooking Mode, Oven Light, No Pre-Heat Mode, Automatic Convection Conversion, Hidden Bake Element, Broiler in Oven, Steam Oven
Cooktop FeaturesContinuous Grate, Removable Grates, Dishwasher Safe Grates, LP Convertible, Wi-Fi Capable
Air FryYes
Induction CookingNo
Convection CookingYes
Smart CompatibleNo
Outdoor ApprovedNo
Downdraft VentilationYes
Drawer TypeBaking
Appliance Fit Width (in.)30
Width (in.)29.875
Height (in.)36
Depth (in.)28.875
Depth w/Door Open 90 Degrees (in.)48.75
Cut Out Depth (in.)28.875
Cut Out Width (in.)30
Cut Out Height (in.)36
Product Weight (lbs.)189
Manufacturer Warranty1 Year Parts & Labor
Commercial Use ApprovedNo
ADA CompliantYes
ENERGY STAR CertifiedNo
Voltage240
Amp40

Additional Dimension

Depth Closed Excluding Handles 26.375"
Depth Closed Including Handles28.875"
Depth Excluding Doors25.563"
Oven Interior Dimension24.125" W x 20.125" D x 22.125
Broiler Element Power4000 W
Bake Element Power3600 W
Convection Element Power900 W
Left Front Element-Burner Power17000 BTU
Right Front Element-Burner Power15000 BTU
Right Rear Element-Burner Power9200 BTU
Maximum Motor CFM300
