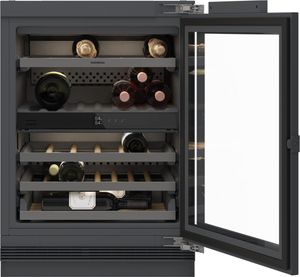

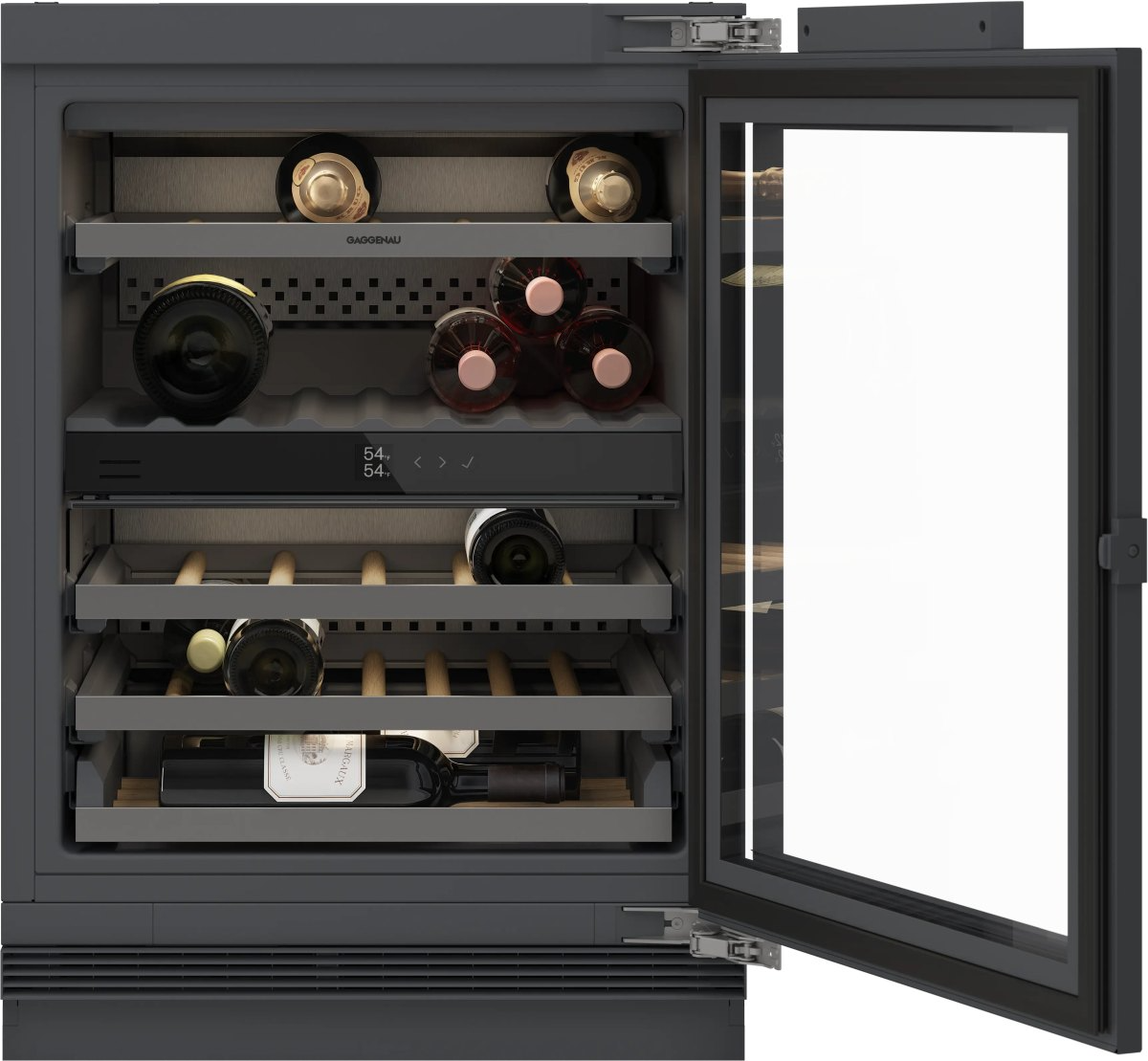

Gaggenau 24" Panel Ready Under Counter Wine Climate Cabinet

Product Overview

Two individual temperature zones, both continuously variable.

Consistent temperatures with exact control from 41 °F to 68 °F.

Humidity control.

Extendable bottle trays made of oak wood and aluminium.

Adjustable LED lighting.

Soft-closing system for a controlled door closure.

Capacity 38 bottles (based on 0.75 l standard bottles).

Side-by-side installation possible with special accessory

Electronic precision temperature control with digital temperature display.

Touch keys.

Presentation light option, dimmable.

Interior LED lighting (3000 K) with automatic dimming with opening and closing of door.

Lockable door (with door lock RA 220 010).

Dynamic cold air distribution with Multi-Flow Air System.

Automatic defrosting with defrost.

Water evaporation.

Constant air purification by activated charcoal air filter in each climate zone.

UV protection (UV transmission: 19 %).

Sabbath mode certified by Star-K.

Open-door and malfunction warning system.

5 bottle trays, 4 of which are extendable.

Storage of Magnum bottles possible (up to 4 Magnum bottles).

LED lighting.

Total volume: 4.6 cu. ft.

Energy consumption 100 kWh/year.

Noise level 38 dB (re 1 pW).

Flat hinge.

Door hinge right, reversible.

Height-adjustable feet.

Door opening angle of 115°, fixable at 90°.

Max. door panel frame weight 22 lbs (10 kg).

For integration next to a side wall a clearance of 7 mm/238 mm hinge side is necessary for door panel thickness of 19 mm without handle and a door opening angle of 90°/115°.

No transport/operation above 5,000 feet (1.500 m) sea level.

Total rating 0.09 kW.

Connecting cable 59" with ground plug.
